Aim High with Volvo CE's Newest, Largest High-Reach Excavator


Volvo CE's new EC750E HR high-reach excavator offers exceptional reach, a maximum pin height of 118 feet, and a weight tolerance of up to 8,000-pound tools. You can easily reconfigure this versatile and powerful demolition excavator with extensions and boom sets to become a multi-use demolition tool.


“The EC750E HR is based on our popular EC750E crawler excavator, but has been substantially re-engineered for high-reach deconstruction purposes with a heavier and wider undercarriage and factory-fitted guarding,” said Volvo CE Demolition Products Sales Manager Walter Reeves. “The features on this machine give it the power, stability, and versatility contractors need to tackle some of the most challenging large-scale demolition projects.”


More Machine, More Possibility

Volvo CE’s patented hydraulic modular joint concept uses a two-pin hydraulic lock mechanism that allows you to change the high reach into a digging configuration with only one person in less than an hour.


The EC750E HR also has a second hydraulic modular joint on the extension boom so you can set the angle of both the extension and the digging boom quickly and safely between bent and straight configurations.

Three Boom Options

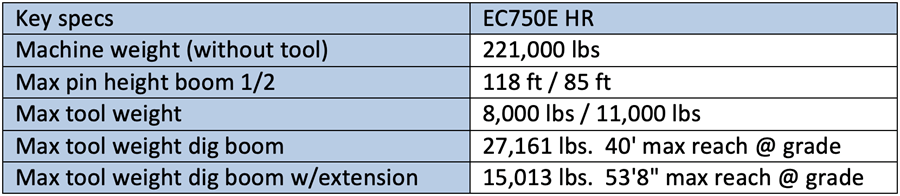

The EC750E HR brings added flexibility with its two high-reach demolition boom sets and one digging boom set with an extension:

  • High-reach boom with 118-foot max pin height while carrying up to 8,000-pound tool

  • High-reach boom with 85-foot max pin height while carrying up to 11,000-pound tool

  • Digging boom set with 14.4-foot extension allows 59-foot pin height

Undercarriage Built for Demolition and Mobility

Compared to the EC750E, the EC750E HR's undercarriage is 1'9" longer and 2'10" wider for added stability. The hydraulic extendable undercarriage also allows a 360-degree working range so the operator can spend less time repositioning the machine.


The retractable undercarriage features easy-to-remove track frames and the ability to self-disassemble and reassemble for ease of transportation. A strengthened hydraulic removal system also means you can remove the complete counterweight in one movement.


Support You Can Count On

Like all Volvo CE excavators, the EC750E HR is backed by the Volvo Lifetime Frame and Structure Warranty, which covers the frame, boom, and arm for the entirety of the initial period of ownership. It is also eligible for ActiveCare Direct™, the telematics service that provides 24/7/365 active machine monitoring and fleet utilization reporting directly from Volvo CE.


Contact your local Highway sales representative for more information about the EC750E HR or the other powerful machines in the high-reach and crawler excavator lineup.


See it in Action
